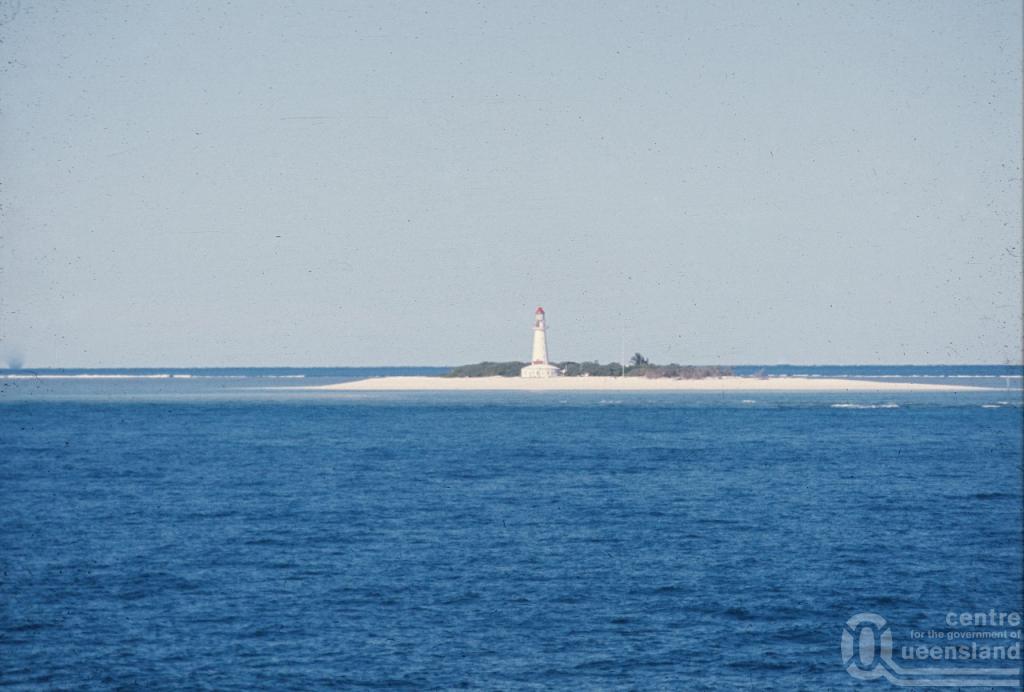

North Reef Lighthouse
Because of the harsh conditions of living on the North Reef Lighthouse only men without families were allowed to be keepers there.
History
The North Reef Lighthouse was completed in 1878.
The structure was placed on a small sandbank on a coral reef. Therefore the building of the lighthouse was a challenge.
The tower and dwellings, a cylinder 12 metres across and 15 metres high, were constructed of timber sheathed in galvanised iron.
It was anchored to solid coral reef bed with a hollow base of cast concrete thus giving it resistance to the shifting nature of the sand bar.
The hollow base also served as a tank for fresh rainwater that was caught from the roof.
There are no details of the original apparatus, but is is known that the light was upgraded in 1923 and again in 1929.
The light was converted to electric operation in 1977 after which is was demanned in 1978.
The light was one of the first stations to receive equipment that enabled the automatic transferring of operating and fault information to a monitoring station.
The light was converted to solar energy in 1987.
Great deprivations were suffered by families who lived on lightstation built over water or or on a small sandbar.
Because the keepers lived in cramped quarters in the base of the tower only single men were allow to go to North Reef as keepers.
continued below …
© All images are copyright of their respective photographers and are not to be used without permission.
Title | Address | Description |
---|---|---|
Pine Islet | The Percy Group QLD 4707, Australia | Pine Islet |
North Reef | Gladstone, QLD, Australia | North Reef |
Cape Capricorn | Unnamed Road, Curtis Island QLD 4680, Australia | Cape Capricorn |
continued from above …
More history.
Keepers
We need your help in compiling a list of keepers for this lighthouse. If you have any information then send it to keeper@lighthouses.org.au.
Please include this lighthouse’s name, the keepers full name and what years they were keepers. Also include the same information for any other lights they were on.
Technical Details
First Exhibited | 1878 |
Permanent Tower | |
CurrentTower | |
Architect | |
Status | Active |
Location | Lat: 23° 11.1010'S Long: 151° 54.1780'E |
Original Optic | |
Current Optic | VRB-25 (Mounted inside lantern) |
Automated | |
Demanned | Jan 1978 |
Construction | Circular iron clad timber frame tower with Chance 10'9" dia. lantern and red cupola |
Height | 24 m |
Elevation | 23 m |
Range | Nominal: 17 nm Geographical: 14 nm |
Character | Fl. W. (2) every 15 secs |
Intensity | 35050 cd |
Light Source | 12V 35W C8 Halogen LP PR30s |
Power Source | Solar conv 28/7/87 |
Operator | AMSA |
Notes | Major Refurbishment 2010/11 As at April 2012 |
NB: Information is historical data and is not for navigational purposes.
Access
The lighthouse grounds are open all year round. The tower is not open to the public.
Tours
No tours are available.
Accommodation
No lighthouse accommodation is available
Links
A postcard from North Reef – Peter Marquis-Kyle 13 October 2011
Sources
- Brian Lord
- From Dusk Till Dawn by Gordon Reid
- Lance Wilson
- North Reef Lighthouse 1877 National Archives of Australia
- North Reef Lighthouse 1949 National Archives of Australia
- North Reef 1970s Syd Pipe Collection, Queensland Places
- North Reef Light from above J Warnes
